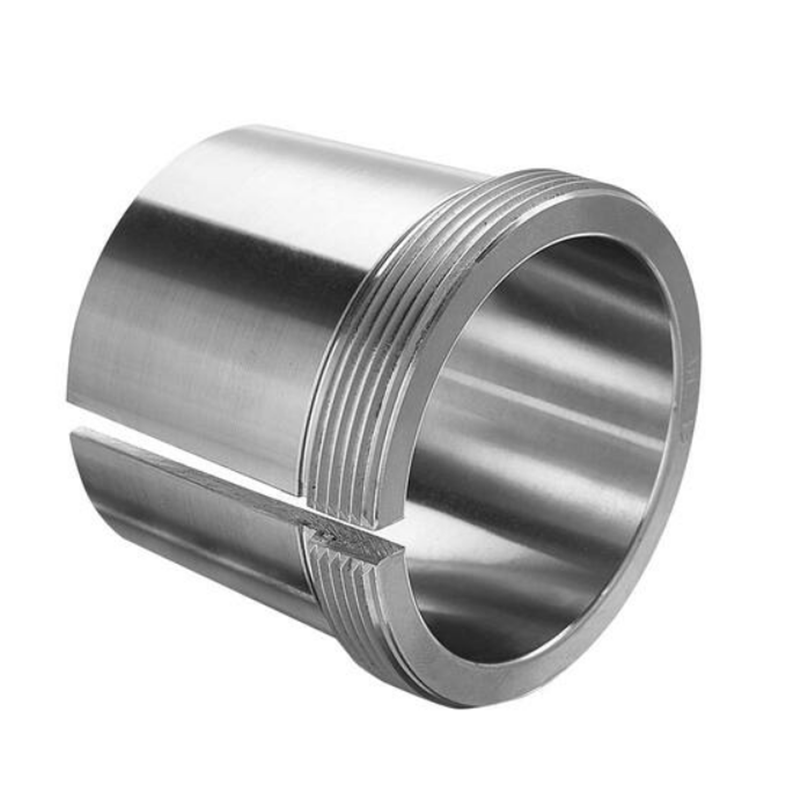

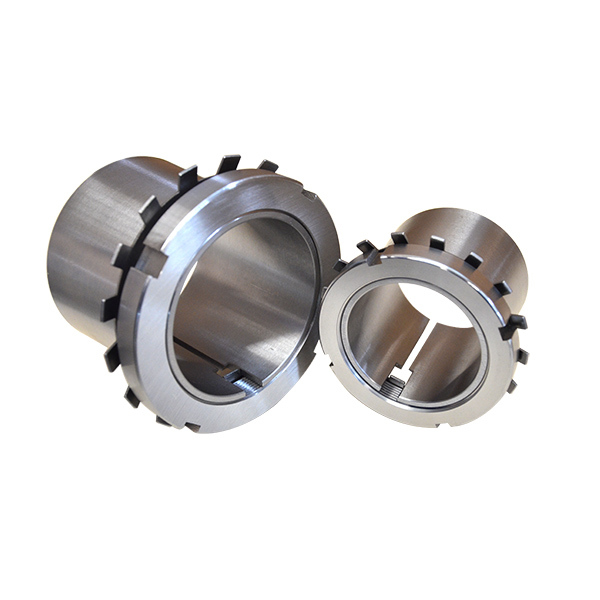

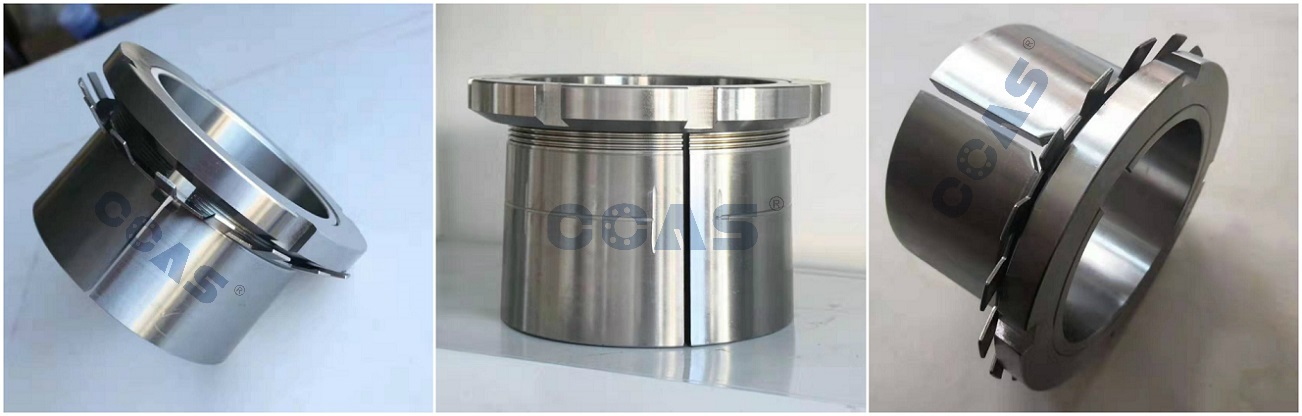

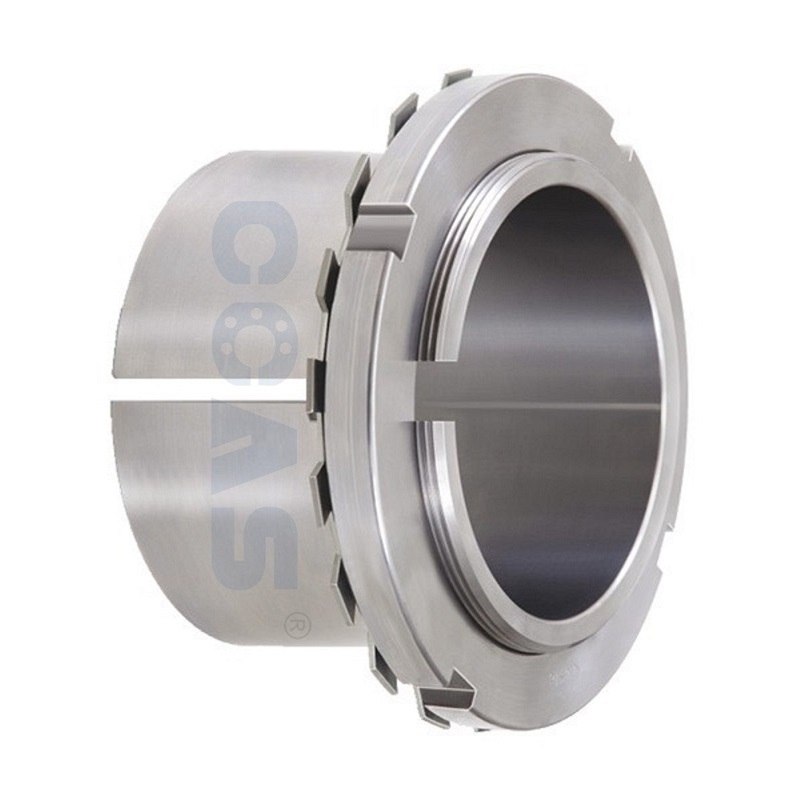

Bearing adapter sleeves are commonly used for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain or stepped shafts. They are easy to install and require no additional location on the shaft. When adapter sleeves are used on plain shafts, the bearing can be located at any position on the shaft. When used on stepped shafts together with an L-shaped spacer ring, bearings can be accurately positioned axially thereby facilitating bearing mounting and dismounting.

Adapter sleeves with hydraulic assistance facilitates mounting of large bearings. Oil pumps are required to inject pressurized oil. They are provided with oil ducts on the thread side and groove on the outer surface for oil injection internal upon request, facilitating the mounting and mainly the dismounting of the assembly.

The hydraulic adapter sleeve has the characteristics of prolonging the life of the bearing and protecting the bearing. It can be used in steel construction, cement mining, textile industry etc. CCAS uses high quality materials to ensure and improve the quality and service life of hydraulic bearing adapter sleeves.

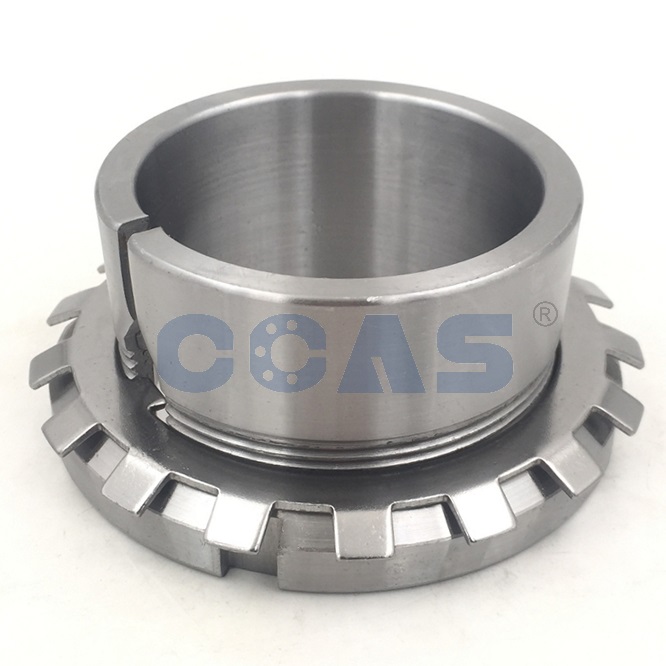

CCAS's adapter sleeves are supplied complete with lock nuts and lock washers or lock plates.

CCAS Bearings Ltd manufactures a comprehensive range of adapter sleeves and withdrawal sleeves. Our adapter sleeves range covers H 2 Series, H 3 Series, H 23 Series, H 31 Series, H 32 Series, H 30 Series, H 39 Series, and hydraulic adapter sleeves of HOH 23/HOH32 Series, HOH 31 Series, HOH 30 Series, and HOH 39 Series. The Withdrawal Sleeves range covers AH 2 Series, AH 3 Series, AH 23 Series, AH 32 Series, AH 22 Series, AH 30 Series, AH 240 Series, AH 241 Series, and AH 39 Series etc.

Drawing and Technical Data Sheet of H 30 series (HE 30 and HA 30) Adapter Sleeves

Great care has been taken to ensure the correctness of the information contained in this publication but no liability can be assumed for any incorrect or incomplete data. CCAS technical department reserves the right to final interpretation.
