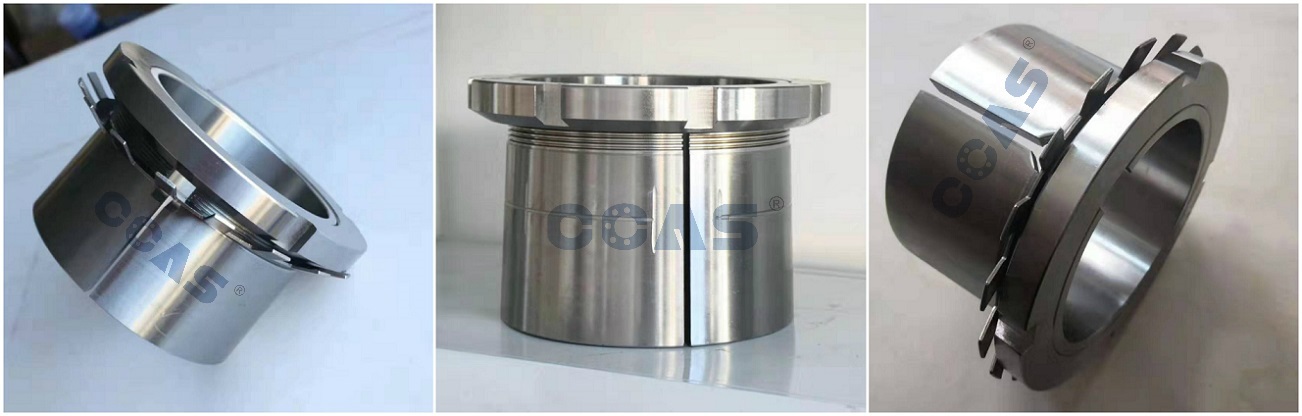

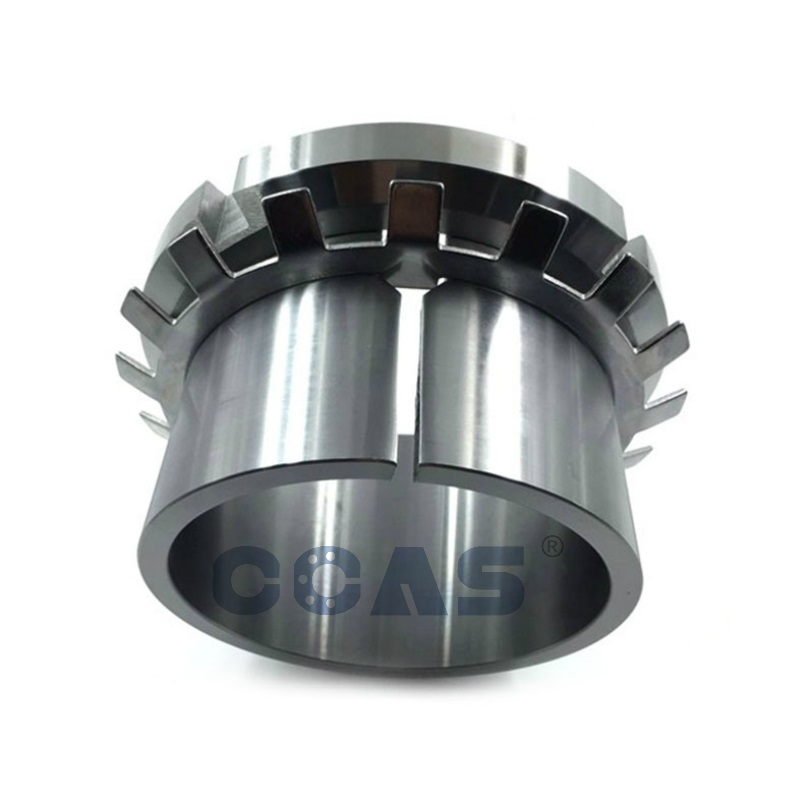

Bearing Adapter Sleeves are commonly used for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain or stepped shafts. They are easy to install and require no additional location on the shaft. When adapter sleeves are used on plain shafts, the bearing can be located at any position on the shaft. When used on stepped shafts together with an L-shaped spacer ring, bearings can be accurately positioned axially thereby facilitating bearing mounting and dismounting. A bearing Adapter is made up of the a sleeve, a lock nut, and a lock washer.

Technical Details:

Product Name: Bearing Adapter Sleeves

Series: H3 series, HE3 series, HS3 series, HA3 series

Model Number: H305, H310, H322, HE309, HE317, HS315, HA320 etc

Taper: 1:12

Material: Carbon Steel

CCAS's packaging of bearing adapter sleeves

Drawing and Technical Data Sheet of H 3 Series Adapter Sleeves

CCAS's adapter sleeves are supplied complete with lock nuts and lock washers.
