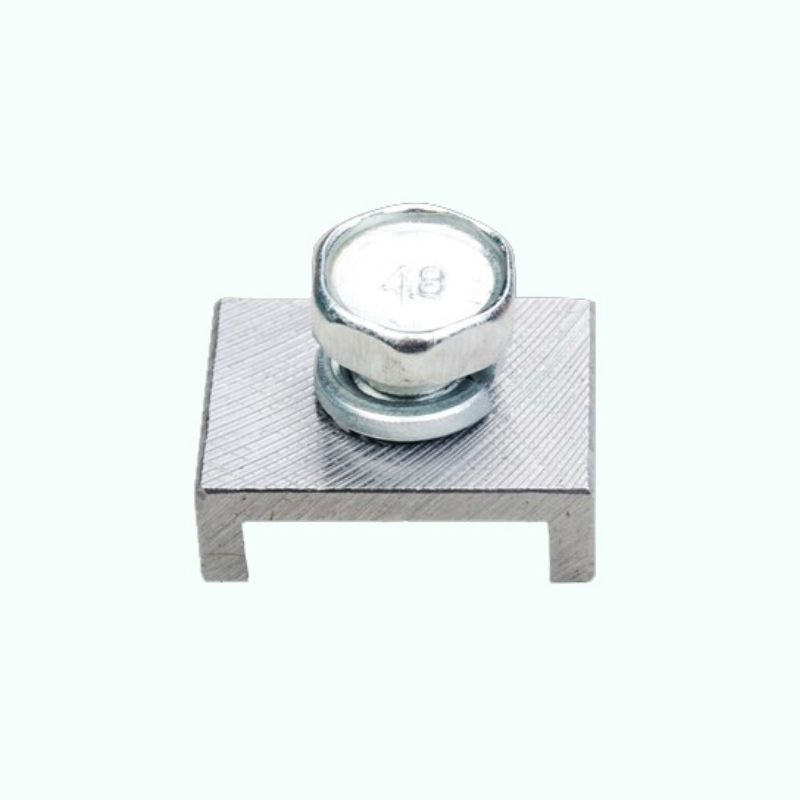

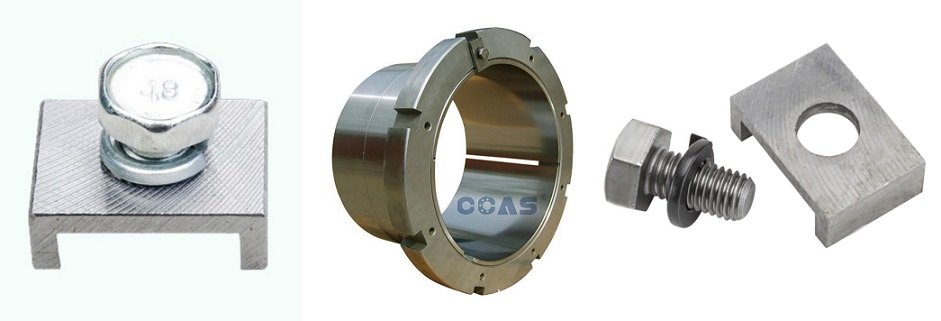

A Lock Plate (also known as a Locking Clip) is an Adapter Sleeve accessory. It is used to lock HM lock nuts. The MS locking clips are attached to the nut using a bolt to engage a slot in the nut and a keyway in the shaft. Lock plates are used with lock nuts in the HM 30 and HM 31 series.
Drawing and Technical Data Sheet of MS 30 & MS 31 Lock Plates (Locking Clips)
m: Lock Plate Width S: Thickness
c: Height d: Hole ID for Screw e: Internal Width
| Code | m mm | S mm | c mm | d mm | e mm | Screw |
| MS 3044 | 20 | 4 | 12 | 7 | 13.5 | M6x12 |
| MS 3048-MS 3052 | 20 | 4 | 12 | 9 | 17.5 | M8x16 |
| MS 3056 | 24 | 4 | 12 | 9 | 17.5 | M8x16 |
| MS 3060 | 24 | 4 | 12 | 9 | 20.5 | M8x16 |
| MS 3064-MS 3068 | 24 | 5 | 15 | 9 | 21 | M8x16 |
| MS 3072 | 28 | 5 | 15 | 9 | 20 | M8x16 |
| MS 3076-MS 3080 | 28 | 5 | 15 | 12 | 24 | M10x20 |
| MS 3084 | 32 | 5 | 15 | 12 | 24 | M10x20 |
| MS 3088-MS 3092 | 32 | 5 | 15 | 14 | 28 | M12x25 |
| MS 3096-30/500 | 36 | 5 | 15 | 14 | 28 | M12x25 |
| MS 30/530-600 | 40 | 7 | 21 | 18 | 34 | M16x30 |
| MS 30/560 | 40 | 7 | 21 | 18 | 29 | M16x30 |
| MS 30/630 | 45 | 7 | 21 | 18 | 34 | M16x30 |
| MS 30/670 | 45 | 7 | 21 | 18 | 39 | M16x30 |
| MS 30/710 | 50 | 7 | 21 | 18 | 39 | M16x30 |
| MS 30/750-800 | 55 | 7 | 21 | 18 | 39 | M16x30 |
| MS 30/850-900 | 60 | 7 | 21 | 22 | 44 | M20x40 |
| MS 30/950 | 60 | 7 | 21 | 22 | 46 | M20x40 |
| MS 30/1000 | 60 | 7 | 21 | 22 | 51 | M20x40 |
| MS 3144-MS 3148 | 20 | 4 | 12 | 9 | 22.5 | M8x16 |
| MS 3152-MS 3156 | 24 | 4 | 12 | 12 | 25.5 | M8x16 |
| MS 3160 | 24 | 4 | 12 | 12 | 30.5 | M10x20 |
| MS 3164 | 24 | 5 | 15 | 12 | 31 | M10x20 |
| MS 3168-MS 3172 | 28 | 5 | 15 | 14 | 38 | M12x25 |
| MS 3176 | 32 | 5 | 15 | 14 | 40 | M12x25 |
| MS 3180-MS 3184 | 32 | 5 | 15 | 18 | 45 | M16x30 |
| MS 3188-MS 3192 | 36 | 5 | 15 | 18 | 43 | M16x30 |
| MS 3196 | 36 | 5 | 15 | 18 | 53 | M16x30 |
| MS 31/500 | 40 | 5 | 15 | 18 | 45 | M16x30 |
| MS 31/530 | 40 | 7 | 21 | 22 | 51 | M20x40 |
| Code | m mm | S mm | c mm | d mm | e mm | Screw |
| MS 31/560-600 | 45 | 7 | 21 | 22 | 54 | M20x40 |
| MS 31/630 | 50 | 7 | 21 | 22 | 61 | M20x40 |
| MS 31/670 | 50 | 7 | 21 | 22 | 66 | M20x40 |
| MS 31/710 | 55 | 7 | 21 | 26 | 69 | M20x40 |
| MS 31/750-800 | 60 | 7 | 21 | 26 | 70 | M24x50 |
| MS 31/850 | 70 | 7 | 21 | 26 | 71 | M24x50 |
| MS 31/900 | 70 | 7 | 21 | 26 | 76 | M24x50 |
| MS 31/950 | 70 | 7 | 21 | 26 | 78 | M24x50 |
| MS 31/1000 | 70 | 7 | 21 | 26 | 88 | M24x50 |
Note: The specification of AL can be applied for MS 31 and the specification of ALL can be applied for MS 30.
