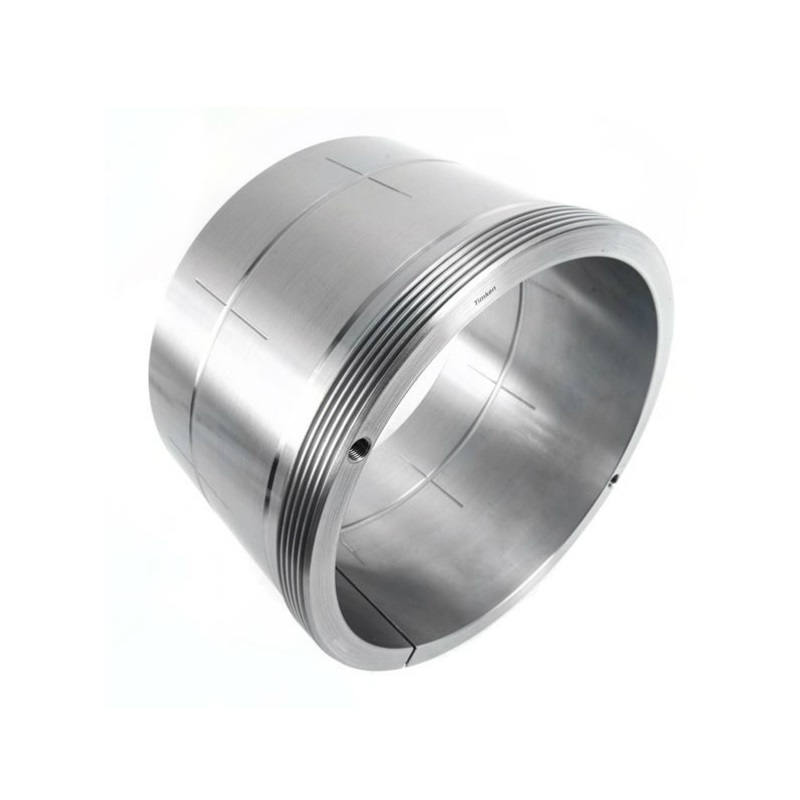

Withdrawal sleeves are often used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. The sleeve is pressed into the bore of the bearing inner ring, which abuts a shaft shoulder or similar fixed components. The sleeve is located on the shaft by a nut or an end plate. KM or HM lock nuts with appropriate locking devices are suitable. Lock nuts are not supplied with the whithdrawal sleeves and must be ordered separately.

With the same normal sleeves dimensions, hydraulic withdrawal sleeves are recommended for shafts of large size sets because they are provided with oil injection gutters, making the assembling and disassembling much easier.

Drawing and Technical Data Sheet of Hydraulic Withdrawal Sleeves

d1: Shaft Measurements               d: Bearing ID             l: Length

G: Nominal Thread             G1: Injection Hole Thread

Code	d1 mm	d mm	l   mm	G	G1	Bearings
AOH 234	160	170	69	M 180x3	M6
AOH 236	170	180	69	M 190x3	M6
AOH 238 G	180	190	73	M 200x3	M6
AOH 240 G	190	200	77	Tr 210x4	M6
AOH 244 G	200	220	85	Tr 230x4	1/8 BSP
AOH 248	220	240	96	Tr 260x4	1/8 BSP
AOH 252	240	260	105	Tr 280x4	1/8 BSP
AOH 256	260	280	105	Tr 300x4	1/8 BSP
AOH 332 G	150	160	88	M 170x3	M6
AOH 334 G	160	170	93	M 180x3	M6
AOH 2236	170	180	105	M 200x3	M6	22236K
AOH 2236 G	170	180	105	M 190x3	M6	22236K
AOH 2238	180	190	112	Tr 210x4	M6	22238K
AOH 2238 G	180	190	112	M 200x3	M6	22238K, C2238K
AOH 2240	190	200	118	Tr 220x4	M6	22240K
AOH 2244	200	220	130	Tr 240x4	1/8 BSP	22244K, C2244K
AOH 2248	220	240	144	Tr 260x4	1/8 BSP	22248K
AOH 2252	240	260	155	Tr 290x4	1/8 BSP	22252K
AOH 2252 G	240	260	155	Tr 280x4	1/8 BSP	22252K
AOH 2256	260	280	155	Tr 310x5	1/8 BSP	22256K
AOH 2256 G	260	280	155	Tr 300x4	1/8 BSP	22256K
AOH 2260	280	300	170	Tr 330x5	1/8 BSP	22260K
AOH 2260 G	280	300	170	Tr 320x5	1/8 BSP	22260K
AOH 2264	300	320	180	Tr 350x5	1/4 BSP	22264K
AOH 2264 G	300	320	180	Tr 340x5	1/4 BSP	22264K
AOH 2332	150	160	140	M 180x3	M6	22332K
AOH 2332 G	150	160	140	M 170x3	M6	22332K
AOH 2334	160	170	146	M 190x3	M6	22334K
AOH 2334 G	160	170	146	M 180x3	M6	22334K
AOH 2336	170	180	154	M 200x3	M6	22336K
Code	d1 mm	d mm	l   mm	G	G1	Bearings
AOH 2336 G	170	180	154	M 190x3	M6	22336K
AOH 2338	180	190	160	Tr 210x4	M6	22338K
AOH 2338 G	180	190	160	M 200x3	M6	22338K
AOH 2340	190	200	170	Tr 220x4	M6	22340K
AOH 2344	200	220	181	Tr 240x4	1/8 BSP	22344K, 23244K
AOH 2348	220	240	189	Tr 260x4	1/8 BSP	22348K, 23248K
AOH 2352	240	260	205	Tr 290x4	1/8 BSP	22352K, 23252K
AOH 2352 G	240	260	205	Tr 280x4	1/8 BSP	22352K, 23252K
AOH 2356	260	280	212	Tr 310x5	1/8 BSP	22356K, 23256K
AOH 2356 G	260	280	212	Tr 300x4	1/8 BSP	22356K, 23256K
AOH 3032	150	160	77	M 170x3	M6	23032K, C3032K
AOH 3034	160	170	85	M 180x3	M6	23034K, C3034K
AOH 3036	170	180	92	M 190x3	M6	23036K, C3036K
AOH 3038	180	190	96	Tr 205x4	M6	23038K
AOH 3038 G	180	190	96	M 200x3	M6	23038K, C3038K
