| Min. Order: | 1 Unit |
| Price: | 9701.49 - 10149.25 |
| Port: | China |
| Place of Origin: | Ningbo,China |
| Settlement Method: | L/C,T/T |
| Transportation Method: | Shipping |
| Company: | Kunshan Pinzhe Industrial Materials Co., Ltd |
| Contacts: | Mike Shi |
| Mail: | pinzhe@solar-generat.com |
| Phone: | 13773120295 |
| Website: | www.solar-generat.com |
| PV: | 223 |
Supplier
Kunshan Pinzhe Industrial Materials Co., Ltd
| Model Number | BT-2000W | ||||
|---|---|---|---|---|---|
| Brand Name | sun rise | ||||
| origin | China | ||||
| Small Orders | Accepted | ||||
control software-sun rise
Laser wavelength-1070NM
Fiber length-Standard configuration10M
operation mode-Continuous / spot welding
Speed range of welding machine-0~120MM/S
Cooling water machine-Industrial thermostatic water tank
Water requirements-Distilled water / purified water
Consumables-Copper nozzle / lens / gas
Operating ambient temperature range-15~35℃
Working environment humidity range-<70%No condensation
Welding head-Simple pendulum
Welding thickness-0.5-6MM
Welding gap-0-1.6MM
Adjustable spot size-0.1-5mm
Welding wire range-0.8-1.6mm
welding material-Stainless steel, iron, aluminum, galvanized plate
Welding gas (optional)-Argon, nitrogen and air
working voltage-220V
Maintenance cycle-30 days
Wire feeder accessories: wire feeding wheel (1.2, 1.6mm), wire feeding pipe, wire feeding clamp, wire feeding copper nozzle.
Laser Welding Head
Smart high frequency swing welding head. Can be widely used in metal equipment, stainless steel home and other industries complex
irregular welding process.

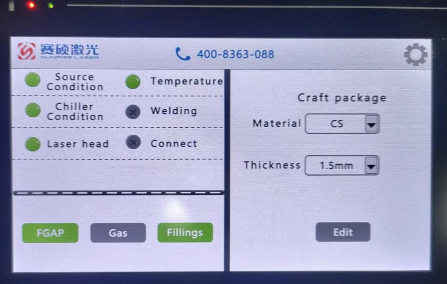

I The signal status on the page displays: shutter, gas, welding gun status, conduction status, laser head status. 1. Shutter: control of laser switch optical signal. 2. Gas: control of gas. 3. Torch status. 4. On state: refers to the loop signal generated by the gun head touching the metal plate. 5. Laser head status.

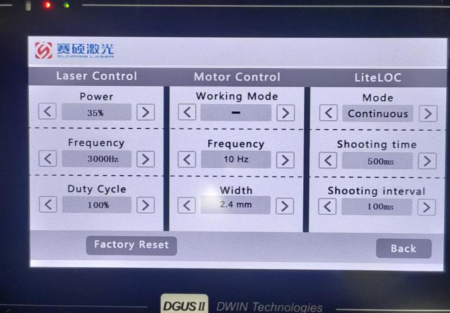

2、 Control section in the page: laser control, laser head control, gas control
1. Laser control: 1) power: 0-100%; 2) Frequency: 50-30000hz; 3) Duty cycle: 0-100%
2. Laser head control:
1) Mode: dot, line, circle, double O-shape, triangle and figure 8. 2) Frequency: refers to the adjustable motor speed (2-46hzms), where 1Hz = 1o circle.
3) Width: refers to the spot size, (0.2-5mm) adjustable.
| FOB Port | ningbo | ||||
|---|---|---|---|---|---|
| Weight per Unit | 280.0 Kilograms | ||||
| Export Carton Dimensions L/W/H | 150 x 130 x 90 Centimeters | ||||
| Lead Time | 10–40 days | ||||
|---|---|---|---|---|---|
| Dimensions per Unit | 150.0 x 130.0 x 90.0 Centimeters | ||||
| Units per Export Carton | 1.0 | ||||
| Export Carton Weight | 280 Kilograms | ||||
- Asia
- Australasia
- Central/South America
- Eastern Europe
- Mid East/Africa
- North America
- Western Europe
Download more information about this product
Payment Details
| Payment Method | Telegraphic Transfer (TT,T/T) | ||||
|---|---|---|---|---|---|
