Terminal Block XY166-5.0
Detail requirements
Send inquiry now
Terminal Block XY166-5.0
Min. Order: 1000PCS
Price: $0.8/pc
Port: China
Place of Origin: Ningbo.china
Settlement Method: L/C,D/P,D/A,T/T
Transportation Method: Shipping,Land transportation,Air freight
Company: NINGBO XINLAIYA ELECTRONIC TECHNOLOGY CO., LTD.
Contacts: Ningbo.china
Mail: xy@china-xinya.com
Phone: +86-574-63506008
Website: http://www.xinyaelectronic.com
PV: 494
Contact Supplier
Leaving a message

洪鹏飞

Email: xy@china-xinya.com

Country/Region: China

Mobile Number: 13857867901

宁波新莱亚(新亚)电子科技有限公司

Personal Center

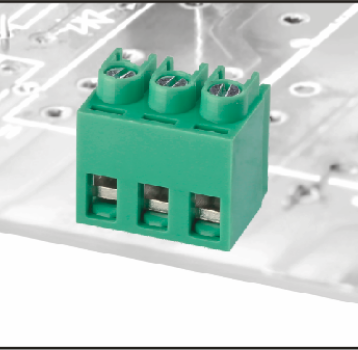

1、ModelXY166-5.0

 Picth:A=5.0mm(.197")

 Poles QTY:2P,3P-12P

 Color:Green(can choice)



2、Dimensioned drawing

XY166-5.0



3、BOM

No.

ITEM

Origin

Material

Surface

QTY

1

Housing

Own

making

PA66(UL 94V-0)

——

1

2

screw

outsourcing

Steel(A3)

Zinc plated

2-24

3

Pin header



Own

making

Brass

Tin Plated

2-24

4

Leaf spring


Own

making

Stainless steel——2-24


4、Technical data

  Wire range:22-12AWG  2.5mm²

  Voltage&Current:300V  15A

  Torque:0.4N.m

  Withstanding Voltage:AC2000V 60s



5、Environment

  Operating  Temperature:-40℃ ~ +105℃

  Pollution  Level:Ⅲ

6、Inspection standards

  GBT 2828.1-2012

7、Useing

  Wire Stripping  Lenght:6-7±0.5mm

  Soldering:

  Wave Soldering:260℃/5s

  Hand Soldering:soldering iron350℃/10s

8Packing(can choice)




9Shipping(can choice)

  In accordance with national laws and regulations allowed to negotiate with customers to determine the mode of transport


10service

 1. In the interests of both parties under the conditions of enthusiasm to provide customers with the consultation of various problems.

 2. If the product quality problems must be negotiated in accordance with the contractual agreement between the two sides.




Factory Show
