| Model Number | BX-#8887 | ||||
|---|---|---|---|---|---|
| Brand Name | FAR | ||||
| origin | China | ||||
| Small Orders | Accepted | ||||

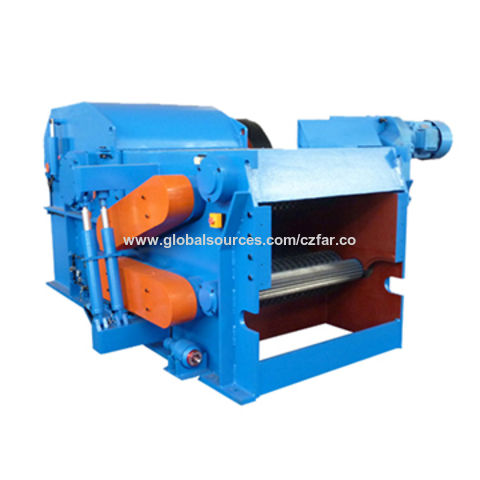

Serial drum chippers of our company are kinds of special equipment that produces technological wooden chips
Widely used in the production of medium-density fiberboard ordinary shaving board and in the papermaking industry
Used as the main machine of material-preparing process of wooden chips, could be used as independent wood chip production equipment as well
Raw materials for the serial drum chippers mainly include: log, small-diameter wood, tree-felling remainder (branch), wood processing remainder (lath, slab, log core and abolish single-board)
Serial drum chippers are of compact structure, ease of operation, high capacity, wide raw materials adaptability, safe and reliable, easy to maintain, it is the relatively advanced slicer at present both at home and abroad
Serial drum chippers can meet the production capacity between 3 and 130 cubic meters of wooden chips
| Model | BX216 | BX218D | BX2110 | BX2113/11 |
| Parameters | ||||
| Rotor diameter (mm) | 650 | 800 | 1000 | 1300 |
| Number of flying knives (pieces) | 2 | 2 | 2x2 | 3x2 |
| Feed opening (mm) | 180x500 | 240x750 | 330x1050 | 400x1050 |
| Knife rotor speed (rpm) | 590 | 650 | 550 | 442 |
| Feed speed (m/min) | 37.2 | 38 | 38 | 43 |
| Stock processed max diameter (mm) | 120 | 160 | 210 | 230 |
| Chip length (mm) | 30 | 20-30 | 30 | 30 |
| Capacity (m3/h) | 10 | 38 | 75 | 108 |
| Main drive motor power (kW) | 55 | 132 | 220 | 315 |
| Feed roller motor power (kW) | 2x3 | 4x2 | 7.5x2 | 11x2 |
| Pump motor power (kW) | --- | 0.55 | 2.2 | 3 |
| Machine net weight (kg) | 4070 | 7500 | 12500 | 18000 |
Product Certifications
| Certificate Standard | CE | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the picture to see a larger one | ||||
| Certificate Number | 3J190117.CFM0T19 | ||||
| Issue Date | 2019/01/17 | ||||
| Issued By | Ente Certificazione Macchine Srl | ||||
| Expiry Date | 2024/01/16 | ||||
Note: Not all certifying agents offer online lookup, and some have a lag time for posting new certificates. If you are unable to find a certificate online, contact the certification agency or supplier for further verification.
| FOB Port | Shanghai | ||||
|---|---|---|---|---|---|
| Lead Time | 30–45 days | ||||
|---|---|---|---|---|---|
